24V 100Ah Forklift Lithium Batteries for Pallet Jack, Stacker, Electric Forklift
PROPOW Lithium Forklift Battery Advantages

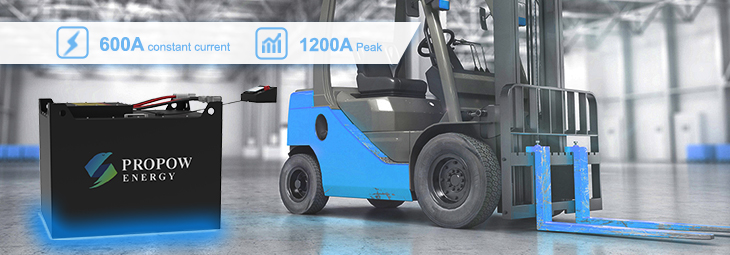

Up to 600A constant, 1200A peak
> Heavy loads? PROPOW high-rate lithium battery delivers stable 600A output and bursts up to 1200A for heavy lifting, acceleration, and slope climbing. Built with advanced BMS and superior thermal stability, it ensures reliable, long-lasting power for your most challenging forklift applications.

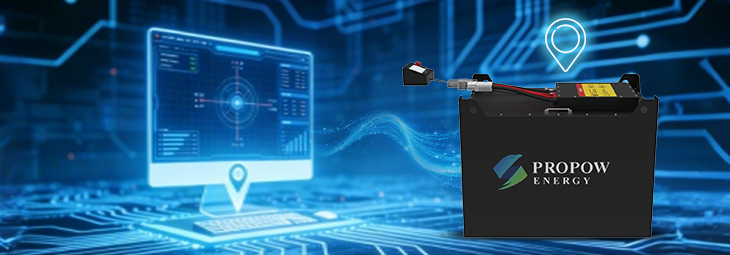

GPS Real-time Tracking Optional
> Track your assets in real time and control operation remotely. PROPOW's smart lithium batteries feature integrated GPS tracking and remote lock functions, providing enhanced security, operational visibility, and management efficiency for your forklift fleet.

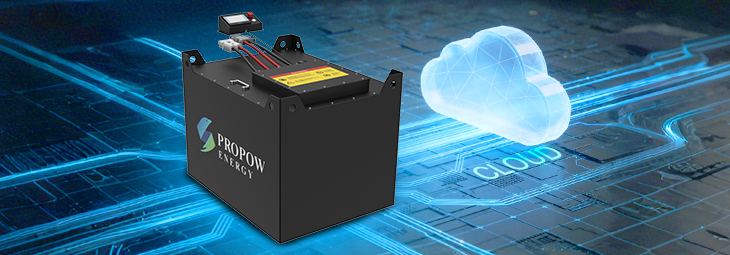

Cloud-based diagnostics & OTA upgrades
> Gain complete visibility into your forklift fleet with cloud monitoring and advanced data analysis. Our system enables seamless over-the-air (OTA) upgrades for battery management, allowing remote diagnostics, performance optimization, and maintenance alerts—all managed effortlessly to extend battery life and enhance operational efficiency.

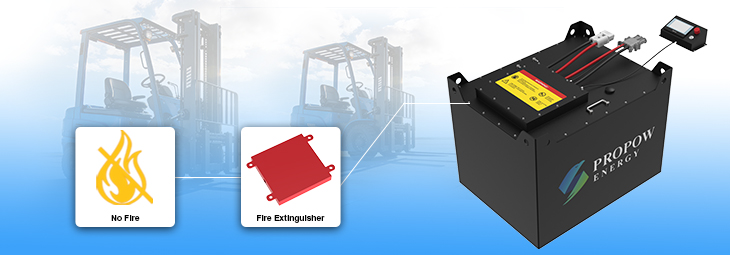

Fireproof and Multiple Protection
> PROPOW lithium forklift batteries are engineered with an integrated fireproof enclosure and a comprehensive multi-protection system. Featuring advanced thermal management, short-circuit prevention, overcharge protection, and voltage stabilization, our batteries ensure maximum safety and reliability in demanding industrial environments. Built to meet stringent safety certifications, they provide peace of mind for heavy-duty operations while extending equipment lifespan through proactive hazard prevention.
Forklift Battery Specialist for Every Brand & Model
PROPOW — Your Custom Power Solution, Compatible with 99% of Forklifts

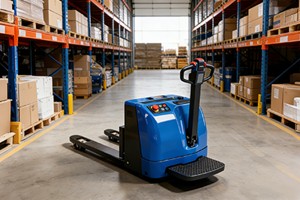

Electric Pallet Jack
Electric Walkie Stacker

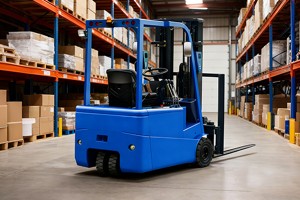

3 Wheel Forklift

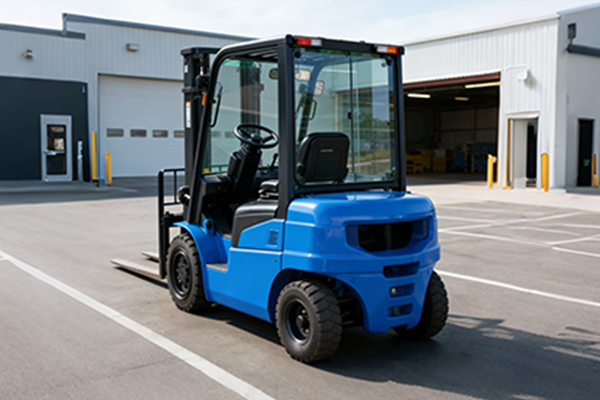

Counter balanced Forklift

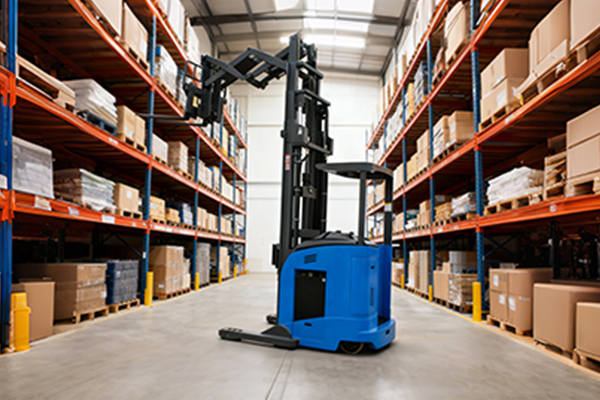

Electric Reach Truck
VNA Forklift

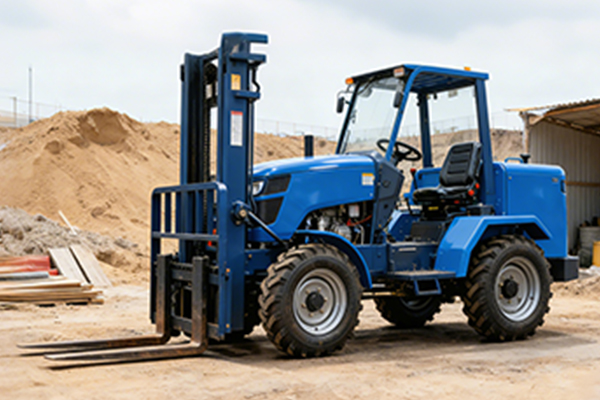

Rough Terrain Forklift

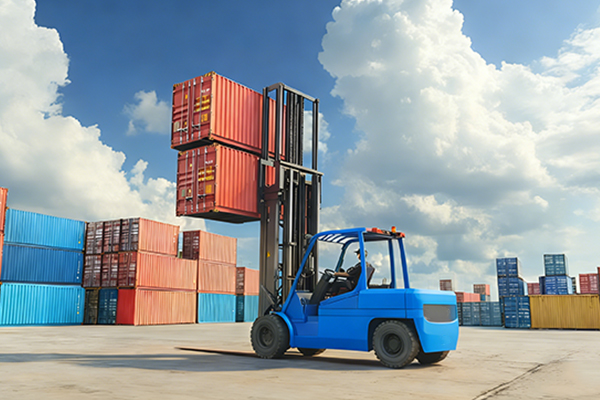

Heavy-Duty Forklift

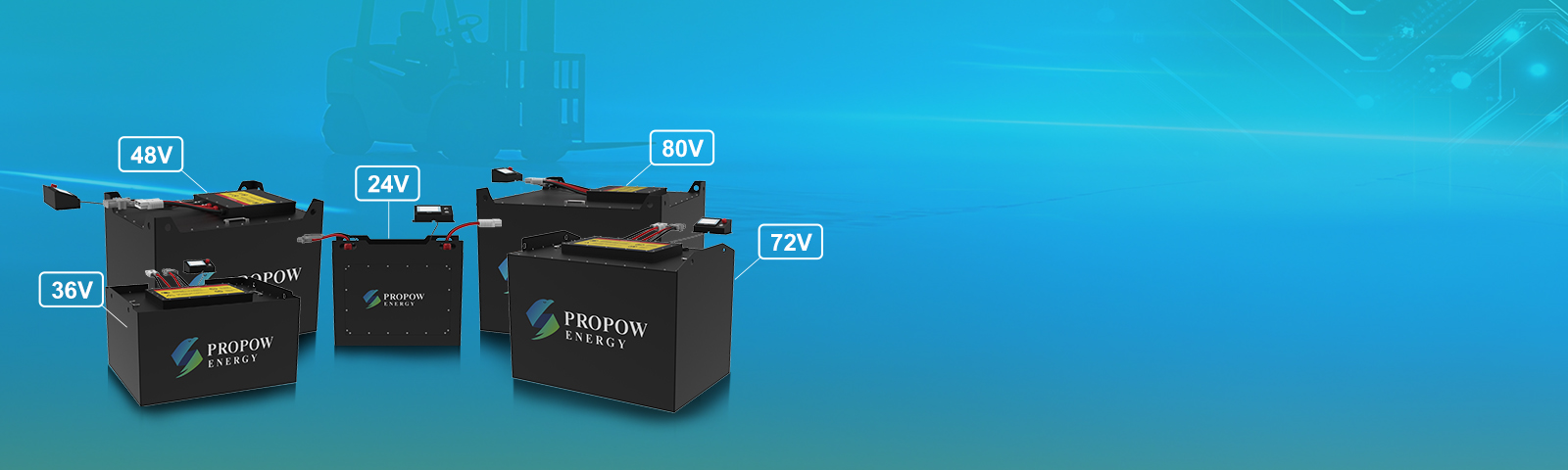

PROPOW Forklift Lithium Battery Specifications
Multiple voltage levels and capacity configurations for various applications
| Specifications | 24V | 24V | 36V | 48V | 48V | 72V | 80V |
|---|---|---|---|---|---|---|---|
| Electrical Specifications | |||||||
| Nominal voltage | 25.6V | 25.6V | 38.4V | 51.2V | 51.2V | 73.6V | 80V |
| Nominal capacity | 100Ah | 304Ah | 608Ah | 304Ah | 560Ah | 460Ah | 690Ah |
| Energy | 2.56kWh | 7.78kWh | 23.34kWh | 15.56kWh | 28.67kWh | 30.9kWh | 55.2kWh |
| Cycle life | >4000 cycles | ||||||
| Function | |||||||
| Remote diagnostics and upgradation | Optional | ||||||
| Heating system | Optional | ||||||
| Mechanical Specifications | |||||||
| Dimensions (L × W × H) | 635×180×538.5mm 25×7.09×21.2" |
624×284×627mm 24.57×11.18×24.69" |
980×765×547mm 38.58×30.12×21.54" |
830×630×627mm 32.68×24.84×29.49" |
830x630x627mm 32.68x24.8x24.69" | 1028x710x780mm 40.47x27.95x30.71" | 1020x990x780mm 40.16x38.98x30.71" |
| Weight | 24KG (52.9lb) | 66KG (145.8lb) | 198KG (436.8lb) | 132KG (291lb) | 255KG(562.2lb) | 283KG (623.9lb) | 461KG (1016lb) |
| Case material & IP rating | Steel, IP67 | ||||||
| Charge & Discharge Specifications | |||||||
| Charge current | 100A | 200A | 200A | 200A | 200A | 300A | 200A |
| Continuous discharge current | 100A | 230A | 320A | 280A | 280A | 280A | 320A |
| Peak discharge current | 300A (30s) | 460A (30s) | 480A (5s) | 420A (30s) | 420A (30s) | 420A (30s) | 450A (5s) |
| Max. charge voltage | 29.2V | 29.2V | 43.8V | 58.4V | 58.4V | 83.95V | 91.25V |
| Cut-off voltage | 20V | 20V | 30V | 40V | 40V | 57.5V | 62.5V |
| Battery management system (BMS) | Yes, built-in BMS | ||||||
Note:
The specifications provided are just a few examples from our standard product lineup. Importantly, PROPOW offers extensive custom engineering capabilities to meet your exact requirements. We can tailor:
1. Voltage & Capacity – from 24V to 80V+, and up to 1000Ah+
2. Physical Dimensions & Form Factor – designed to fit your specific equipment
3. Communication Protocols – compatible with most major BMS systems
4. Special Features – such as low‑temp heating, GPS tracking, and remote monitoring
5. Connector Types & Interfaces – customized to match your existing setup
Ready to design your ideal power solution?
We welcome the opportunity to discuss your needs and provide a tailored proposal. Please feel free to contact us anytime.
Why Choose PROPOW Energy Forklift Batteries
Total Seal Defense
IP67 Rated for Complete Water and Dust Ingress Protection
Unbreakable Safety
100% Fireproof Construction with Multiple Protection Layers
Smart Fleet Guardian
Real-Time GPS Tracking with Remote Lock/Unlock Capability
Unwavering Performance
Delivers Consistent and Reliable Power Throughout the Cycle
Charging in Fast Forward
Engineered for Rapid Charging to Minimize Downtime
Future-Proof Technology
Cloud-Based Remote Diagnostics and Over-the-Air (OTA) Software Upgrades
Ready to power up your fleet?
PROPOW Forklift Lithium Battery Specifications
Multiple voltage levels and capacity configurations for various applications
| Specifications | 24V | 24V | 36V | 48V | 48V | 72V | 80V |
|---|---|---|---|---|---|---|---|
| Electrical Specifications | |||||||
| Nominal voltage | 25.6V | 25.6V | 38.4V | 51.2V | 51.2V | 73.6V | 80V |
| Nominal capacity | 100Ah | 304Ah | 608Ah | 304Ah | 560Ah | 460Ah | 690Ah |
| Energy | 2.56kWh | 7.78kWh | 23.34kWh | 15.56kWh | 28.67kWh | 30.9kWh | 55.2kWh |
| Cycle life | >4000 cycles | ||||||
| Function | |||||||
| Remote diagnostics and upgradation | Optional | ||||||
| Heating system | Optional | ||||||
| Mechanical Specifications | |||||||
| Dimensions (L × W × H) | 635×180×538.5mm 25×7.09×21.2″ |
624×284×627mm 24.57×11.18×24.69″ |
980×765×547mm 38.58×30.12×21.54″ |
830×630×627mm 32.68×24.84×29.49″ |
830x630x627mm 32.68×24.8×24.69″ | 1028x710x780mm 40.47×27.95×30.71″ | 1020x990x780mm 40.16×38.98×30.71″ |
| Weight | 24KG (52.9lb) | 66KG (145.8lb) | 198KG (436.8lb) | 132KG (291lb) | 255KG(562.2lb) | 283KG (623.9lb) | 461KG (1016lb) |
| Case material & IP rating | Steel, IP67 | ||||||
| Charge & Discharge Specifications | |||||||
| Charge current | 100A | 200A | 200A | 200A | 200A | 300A | 200A |
| Continuous discharge current | 100A | 230A | 320A | 280A | 280A | 280A | 320A |
| Peak discharge current | 300A (30s) | 460A (30s) | 480A (5s) | 420A (30s) | 420A (30s) | 420A (30s) | 450A (5s) |
| Max. charge voltage | 29.2V | 29.2V | 43.8V | 58.4V | 58.4V | 83.95V | 91.25V |
| Cut-off voltage | 20V | 20V | 30V | 40V | 40V | 57.5V | 62.5V |
| Battery management system (BMS) | Yes, built-in BMS | ||||||
Note:
The specifications provided are just a few examples from our standard product lineup. Importantly, PROPOW offers extensive custom engineering capabilities to meet your exact requirements. We can tailor:
1. Voltage & Capacity – from 24V to 80V+, and up to 1000Ah+
2. Physical Dimensions & Form Factor – designed to fit your specific equipment
3. Communication Protocols – compatible with most major BMS systems
4. Special Features – such as low‑temp heating, GPS tracking, and remote monitoring
5. Connector Types & Interfaces – customized to match your existing setup
Ready to design your ideal power solution?
We welcome the opportunity to discuss your needs and provide a tailored proposal. Please feel free to contact us anytime.
ProPow Technology Co., Ltd. is a company specialized in the research and development as well as manufacturing of lithium batteries. The products include 26650, 32650, 40135 cylindrical cell and prismatic cell, Our high-quality batteries find applications in various fields. ProPow also provides customized lithium battery solutions to meet the specific needs of your applications.
|
Forklift LiFePO4 Batteries |
Sodium-ion battery SIB |
LiFePO4 Cranking Batteries |
LiFePO4 Golf Carts Batteries |
Marine boat batteries |
RV Battery |
|
Motorcycle Battery |
Cleaning Machines Batteries |
Aerial Work Platforms Batteries |
LiFePO4 Wheelchair Batteries |
Energy Storage Batteries |
How To Customize Your Battery Brand Or OEM Your Battery?
Propow’s automated production workshop is designed with cutting-edge intelligent manufacturing technologies to ensure efficiency, precision, and consistency in lithium battery production. The facility integrates advanced robotics, AI-driven quality control, and digitalized monitoring systems to optimize every stage of the manufacturing process.
Quality Control
Propow places great emphasis on product quality control, covering but not limited to standardized R&D and design, smart factory development, raw material quality control, production process quality management, and final product inspection. Propw has always adhered to high-quality products and excellent services to enhance customer trust, strengthen its industry reputation, and solidify its market position.
We have obtained ISO9001 certification.With advanced lithium battery solutions, a comprehensive Quality Control system, and Testing system, ProPow has obtained CE, MSDS, UN38.3, IEC62619, RoHS, as well as sea shipping and air transport safety reports. These certifications not only ensure the standardization and safety of products but also facilitate import and export customs clearance.
