48V 105Ah Golf Cart LiFePO4 Battery CP48105 Battery
-
36V/48V/72V for golf cart
-
Bluetooth monitoring
-
Heating/GPS function optionallife
-
High discharge current 150A/200A/250A/300A
36V 48V 51V 72V Golf Cart Battery
| Model | Nominal Voltage |
Nominal Capacity |
Energy (KWH) |
Dimension (L*W*H) |
Weight (KG/lbs) |
Standard Charge |
Discharge Current |
Max. Discharge |
QuickCharge time |
Standard Charge time |
Self Dischargeper month |
Casing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CP36105 | 38.4V | 105Ah | 4.03KWH | 395*312*243mm | 37KG(81.57lbs) | 22A | 250A | 500A | 2.0h | 5.0h | <3% | Steel |
| CP36160 | 38.4V | 160Ah | 6.144KWH | 500*400*243mm | 56KG(123.46lbs) | 22A | 250A | 500A | 2.0h | 7h | <3% | Steel |
| CP51055 | 51.2V | 55Ah | 2.82KWH | 416*334*232mm | 28.23KG(62.23lbs) | 22A | 150A | 300A | 2.0h | 2.5h | <3% | Steel |
| CP51072 | 51.2V | 72Ah | 3.69KWH | 563*247*170mm | 37KG(81.57lbs) | 22A | 200A | 400A | 2.0h | 3h | <3% | Steel |
| CP51105 | 51.2V | 105Ah | 5.37KWH | 472*312*243mm | 45KG(99.21lbs) | 22A | 250A | 500A | 2.5h | 5.0h | <3% | Steel |
| CP51160 | 51.2V | 160Ah | 8.19KWH | 615*403*200mm | 72KG(158.73lbs) | 22A | 250A | 500A | 3.0h | 7.5h | <3% | Steel |
| CP72072 | 73.6V | 72Ah | 5.30KWH | 558*247*347mm | 53KG(116.85lbs) | 15A | 250A | 500A | 2.5h | 7h | <3% | Steel |
| CP72105 | 73.6V | 105Ah | 7.72KWH | 626*312*243mm | 67.8KG(149.47lbs) | 15A | 250A | 500A | 2.5h | 7.0h | <3% | Steel |
| CP72160 | 73.6V | 160Ah | 11.77KWH | 847*405*230mm | 115KG(253.53lbs) | 15A | 250A | 500A | 3.0h | 10.7h | <3% | Steel |
| CP72210 | 73.6V | 210Ah | 1.55KWH | 1162*333*250mm | 145KG(319.67lbs) | 15A | 250A | 500A | 3.0h | 12.0h | <3% | Steel |

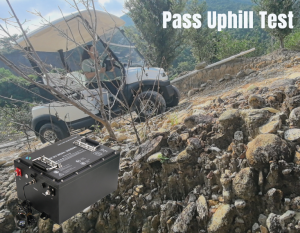

Stronger Power for Uphill
Smaller in size, higher in energy Customize golf cart batteries with smaller dimension, more power and longer run times. Whatever you need powered, our lithium batteries and proprietary BMS can handle it with ease.
Smaller in size, higher in energy
Customize golf cart batteries with smaller dimension, more power and longer run times. Whatever you need powered, our lithium batteries and proprietary BMS can handle it with ease.
BT Monitoring
BT battery monitors are an invaluable tool that keeps you in the know. You have instant access to battery state of charge (SOC), voltage, cycles, temperatures, and a complete log of any potential issues via the Neutral BT app or customized app.
Support Remote Diagnosis and upgradation
> Users can send the historical data of the battery through the BT mobile APP analyze the battery data and troubleshoot any issues.
Support BMS remote upgradation!
Pre-heating system
LiFePO4 batteries come with a built-in heating system. Internal heating is an important feature for batteries performing well in cold weather, allowing the batteries to charge smoothly even at freezing temperatures (below 0℃).
Customize Solutions
Support customized battery solutions for golf carts.
Battery Description Advantages
-
Bluetooth monitoring
Battery status can be checked by mobile phone in real-time
01 -
Touchable Display(Optional)
Accurately display SOC/Voltage/Current
02 -
SOC alarm function optional
When the SOC reach to 10%(can be set up lower or higher), the buzzer rings
03 -
High discharge current
Support high discharge current, 150A/200A/250A/300A. Good for hills climbing
04 -
GPS optional
GPS positioning function
05 -
Self-heating function optional
Charged at freezing temperature
06
Battery Internal Details
Golf Cart Battery Features
-
Grade A Cell
Adopt Grade A famous brand Prismatic LiFePO4 Cell, Each cells is with high quality that will last longer life, safer. -
Built-in Integrated Battery Management System (BMS)
Built-in intelligent BMS, could pass high current, the BMS protection from overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance. -

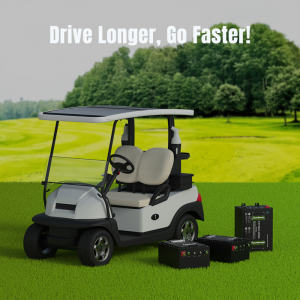

Longer Runtime!
Center Power Golf cart lifepo4 batteries design life up to 10 years! Laser welding the cells with Aluminum sheet , adopt AGW cable, each details handle well! -
Easy Operation, Plug and Play
Our Golf Cart LiFePO4 Batteries is very easy to operate, portable handle, it is convenient to lift it up. -
Private Label
Accept to make your own lable on the golf cart lifepo4 batteries, it helps you to marketing your own brand! -
Complete Battery System Solution
Accessories kit optional, such as charger, voltage reducer, bracket, charger receptacle, etc.
Accessories Drawing
-
Voltage Reducer DC Converter
-
Battery Bracket
-
Charger Receptacle
-
Charger AC extension cable
-
Display
-
Charger
-
Customized BMS
ProPow Technology Co., Ltd. is a company specialized in the research and development as well as manufacturing of lithium batteries. The products include 26650, 32650, 40135 cylindrical cell and prismatic cell, Our high-quality batteries find applications in various fields. ProPow also provides customized lithium battery solutions to meet the specific needs of your applications.
|
Forklift LiFePO4 Batteries |
Sodium-ion battery SIB |
LiFePO4 Cranking Batteries |
LiFePO4 Golf Carts Batteries |
Marine boat batteries |
RV Battery |
|
Motorcycle Battery |
Cleaning Machines Batteries |
Aerial Work Platforms Batteries |
LiFePO4 Wheelchair Batteries |
Energy Storage Batteries |
How To Customize Your Battery Brand Or OEM Your Battery?
Propow’s automated production workshop is designed with cutting-edge intelligent manufacturing technologies to ensure efficiency, precision, and consistency in lithium battery production. The facility integrates advanced robotics, AI-driven quality control, and digitalized monitoring systems to optimize every stage of the manufacturing process.
Quality Control
Propow places great emphasis on product quality control, covering but not limited to standardized R&D and design, smart factory development, raw material quality control, production process quality management, and final product inspection. Propw has always adhered to high-quality products and excellent services to enhance customer trust, strengthen its industry reputation, and solidify its market position.
We have obtained ISO9001 certification.With advanced lithium battery solutions, a comprehensive Quality Control system, and Testing system, ProPow has obtained CE, MSDS, UN38.3, IEC62619, RoHS, as well as sea shipping and air transport safety reports. These certifications not only ensure the standardization and safety of products but also facilitate import and export customs clearance.
