51.2V 105Ah Golf Cart LiFePO4 Battery CP51105 Battery
The PROPOW CP51105 51.2V 105Ah LiFePO4 battery is engineered for 48V golf carts, providing 5.37kWh of usable energy, 4000+ deep cycles, built-in smart BMS protection, and superior thermal stability. Compared to lead-acid batteries, it offers faster charging, lighter weight, higher discharge efficiency, and longer service life — ideal for high-demand golf cart and electric vehicle applications.
-
36V/48V/72V for golf cart
-
Bluetooth monitoring
-
Heating/GPS function optionallife
-
High discharge current 150A/200A/250A/300A
| Model | Battery Energy (Wh) | Rated Voltage (V) | Rated Capacity (Ah) | Max Charge Voltage (V) | Cut-off Voltage (V) | Charge Current (A) | Continuous Discharge Current (A) | Peak Discharge Current (A) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 36V 105Ah | 4032 | 38.4 | 105 | 43.8 | 30 | 50 | 150 | 300 | 395*312*243 | ~37 |
| 36V 160Ah | 6144 | 38.4 | 160 | 43.8 | 30 | 50 | 150 | 300 | 500*400*243 | ~56 |
| 51.2V 55Ah | 2816 | 51.2 | 55 | 58.4 | 40 | 50 | 50 | 100 | 416*334*232 | 28.23 |
| 51.2V 60Ah | 3072 | 51.2 | 60 | 58.4 | 40 | 50 | 150 | 300 | 416*334*232 | 33.5 |
| 51.2V 72Ah | 3696.4 | 51.2 | 72 | 58.95 | 40 | 50 | 150 | 300 | 416*334*170 | ~30 |
| 51.2V 80Ah | 4096 | 51.2 | 80 | 58.4 | 40 | 50 | 150 | 300 | 472*312*210 | ~42 |
| 51.2V 105Ah | 5376 | 51.2 | 105 | 58.4 | 40 | 50 | 150 | 300 | 472*312*243 | ~45 |
| 51.2V 160Ah | 8192 | 51.2 | 160 | 58.4 | 40 | 50 | 150 | 300 | 615*403*200 | ~72 |
| 72V 72Ah | 5299.2 | 73.6 | 72 | 83.95 | 57.5 | 50 | 150 | 300 | 558*247*346.9 | 50 |
| 72V 105Ah | 7728 | 73.6 | 105 | 83.95 | 57.5 | 50 | 150 | 300 | 626*312*243 | 67.8 |
| 72V 160Ah | 11776 | 73.6 | 160 | 83.95 | 57.5 | 50 | 150 | 300 | 846*405*230 | ~105 |
Other specifications can be customized, OEM/ODM accepted.
Benefits
PROPOW Lithium Golf Cart Solutions Intelligent Technologies
R&D team
> Advanced lithium iron phosphate battery technology, professional R&D team over 15 years experience, all technical engineers are from famous companies such as BYD, CATL, Huawei.
Bluetooth
> Upgrade to Center Power golf carts solutions with Bluetooth, detect the battery status in real time, it is very convenient!
Support remote diagnosis
> Users can send the historical data of the battery through the Bluetooth mobile APP, so as to analyze the battery data and troubleshoot any issues.
PROPOW provide smaller size solutions
> Same battery voltage, same capacity, but smaller in size, lighter in weight, heavier in power!
> Smaller lifepo4 golf cart battery dimension perfectly designed for fitting any brand golf carts, no worries the size at all!
PROPOW Energy, Your reliable partner
Power satisfied, life satisfied!
R&D Team
Over 15 years R&D experience.
OEM/ODM Solutions
Customized battery solutions(BMS/Size/Function/Case/Color, etc.).
Global Leading Technologies
Advanced lithium battery technologies.
Quality Ensured
Complete QC and Testing system.
Safe &Fast Delivery
Short lead time Professional lithium batteries transport agent.
After-sales Guaranteed
100% worry free about after-service.
Solutions
Battery Description Advantages
-
Bluetooth monitoring
Battery status can be checked by mobile phone in real-time
01 -
Touchable Display(Optional)
Accurately display SOC/Voltage/Current
02 -
SOC alarm function optional
When the SOC reach to 10%(can be set up lower or higher), the buzzer rings
03 -
High discharge current
Support high discharge current, 150A/200A/250A/300A. Good for hills climbing
04 -
GPS optional
GPS positioning function
05 -
Self-heating function optional
Charged at freezing temperature
06
Battery Internal Details
Golf Cart Battery Features
-
Grade A Cell
Adopt Grade A famous brand Prismatic LiFePO4 Cell, Each cells is with high quality that will last longer life, safer. -
Built-in Integrated Battery Management System (BMS)
Built-in intelligent BMS, could pass high current, the BMS protection from overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance. -
Longer Runtime!
Center Power Golf cart lifepo4 batteries design life up to 10 years! Laser welding the cells with Aluminum sheet , adopt AGW cable, each details handle well! -
Easy Operation, Plug and Play
Our Golf Cart LiFePO4 Batteries is very easy to operate, portable handle, it is convenient to lift it up. -
Private Label
Accept to make your own lable on the golf cart lifepo4 batteries, it helps you to marketing your own brand! -

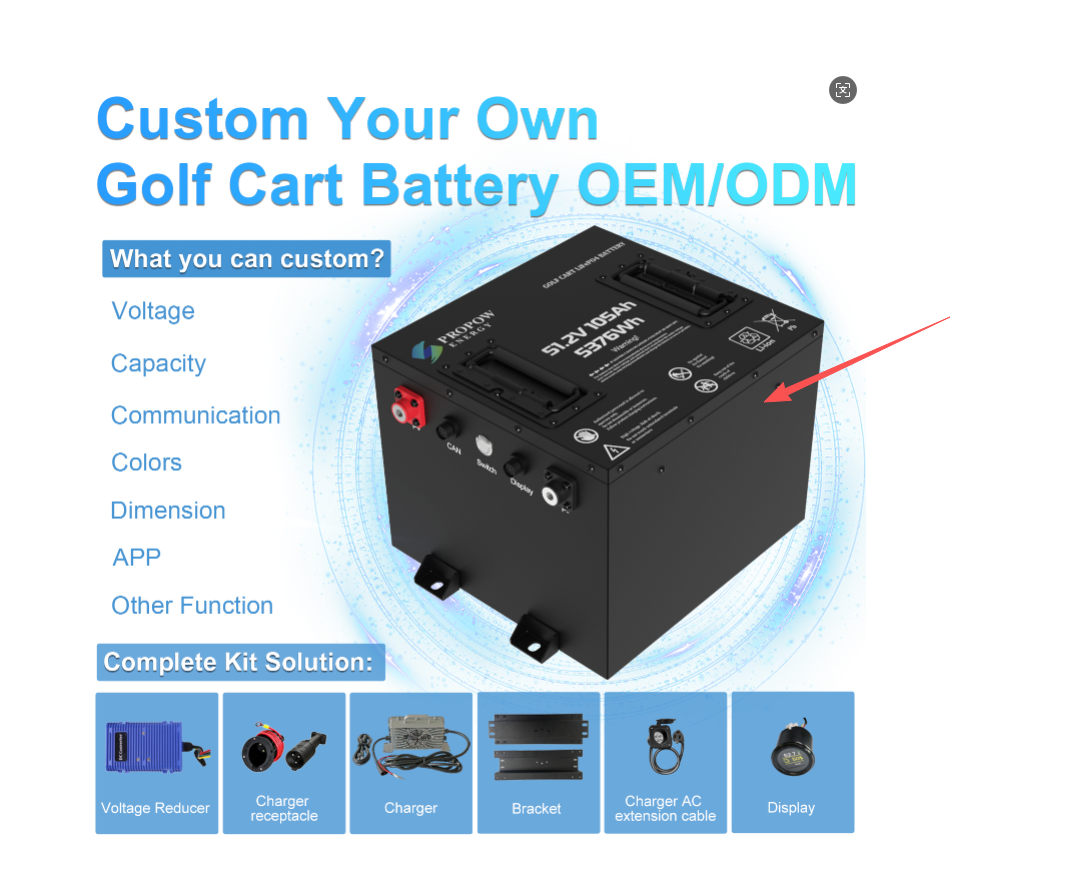

Complete Battery System Solution
Accessories kit optional, such as charger, voltage reducer, bracket, charger receptacle, etc.
Accessories Drawing
-
Voltage Reducer DC Converter
-
Battery Bracket
-
Charger Receptacle
-
Charger AC extension cable
-
Display
-
Charger
-
Customized BMS
ProPow Technology Co., Ltd. is a company specialized in the research and development as well as manufacturing of lithium batteries. The products include 26650, 32650, 40135 cylindrical cell and prismatic cell, Our high-quality batteries find applications in various fields. ProPow also provides customized lithium battery solutions to meet the specific needs of your applications.
|
Forklift LiFePO4 Batteries |
Sodium-ion battery SIB |
LiFePO4 Cranking Batteries |
LiFePO4 Golf Carts Batteries |
Marine boat batteries |
RV Battery |
|
Motorcycle Battery |
Cleaning Machines Batteries |
Aerial Work Platforms Batteries |
LiFePO4 Wheelchair Batteries |
Energy Storage Batteries |
How To Customize Your Battery Brand Or OEM Your Battery?
Propow’s automated production workshop is designed with cutting-edge intelligent manufacturing technologies to ensure efficiency, precision, and consistency in lithium battery production. The facility integrates advanced robotics, AI-driven quality control, and digitalized monitoring systems to optimize every stage of the manufacturing process.
Quality Control
Propow places great emphasis on product quality control, covering but not limited to standardized R&D and design, smart factory development, raw material quality control, production process quality management, and final product inspection. Propw has always adhered to high-quality products and excellent services to enhance customer trust, strengthen its industry reputation, and solidify its market position.
We have obtained ISO9001 certification.With advanced lithium battery solutions, a comprehensive Quality Control system, and Testing system, ProPow has obtained CE, MSDS, UN38.3, IEC62619, RoHS, as well as sea shipping and air transport safety reports. These certifications not only ensure the standardization and safety of products but also facilitate import and export customs clearance.
